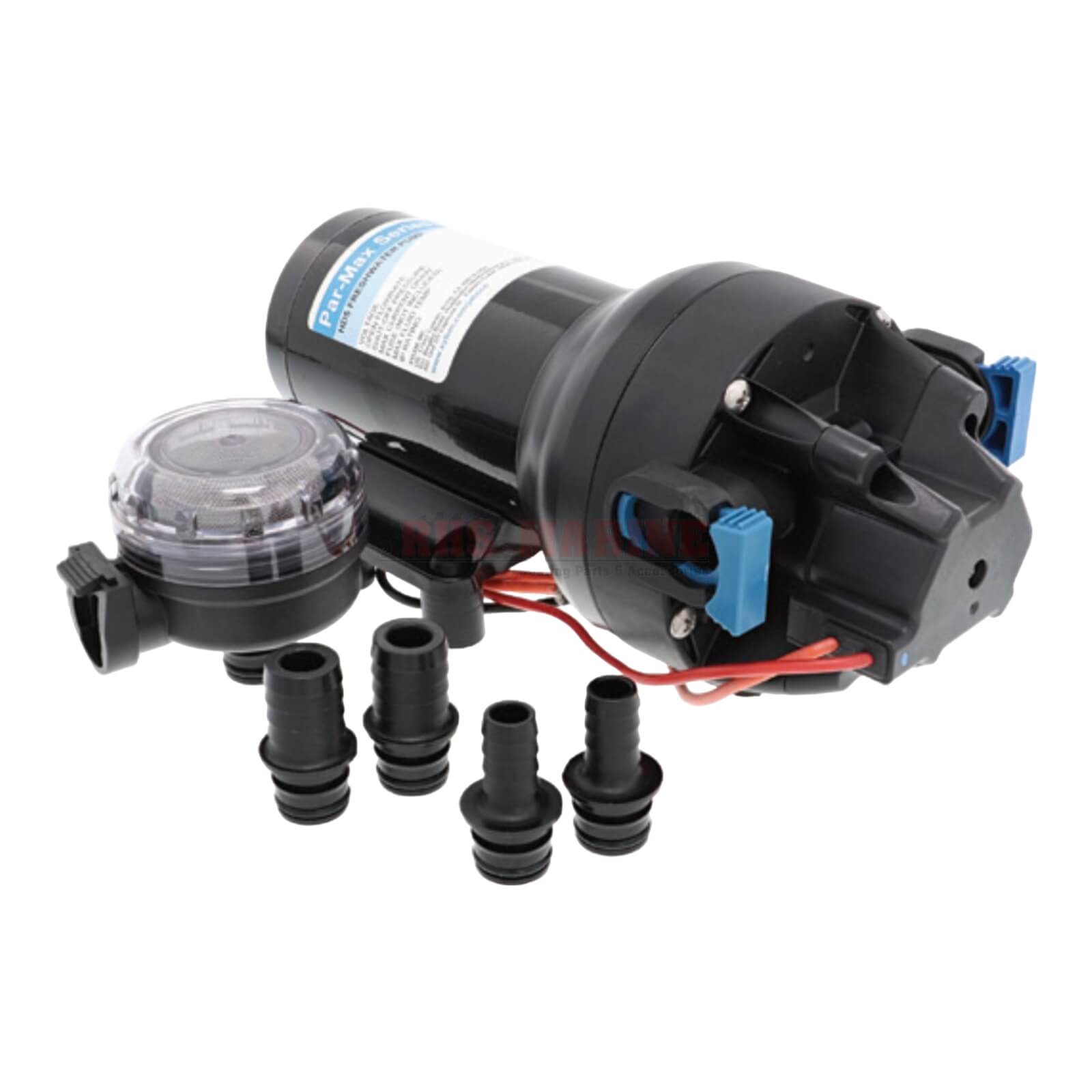

12v Water Pressure Pump Heavy Duty 19 LPM Fresh Water Small Boats Caravans RV

These Heavy Duty (HD) Par-Max 5 freshwater pressure pumps off er robust construction and high performance.

These new modern design pumps have a 5 chamber diaphragm with reinforced polypropylene pumphead and off er pressure up to 60PSI.

These heavy Duty (HD) models include a heavy duty wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing - to improve pressure capability and offer longer life and exceptional performance.

The ideal robust heavy duty pump for providing freshwater automatically to up to 4 x 20mm outlets on pleasure craft up to approx the 15 metre (50 Ft) range.

Includes a 40 mesh plug-in universal inlet strainer in the box with the pump.

HD 5 chamber automatic pressure pump gives flow up to 5 US Gallons per minute (19 litres per minute) and pressure up to 60 PSI.

Serves up to 4 x 20mm outlets onboard including galley, shower and additional faucets.

The Par-Max 5.0 HD gives very smooth water flow even at low demand due to it’s built-in pulsation dampening by-pass valve which controls unwanted cycling and reduces noise.

Inlet filter, corrosion resistant motor, soft rubber vibration dampening mounts and 4 x quick connect plug-in hose ports included - 2 x 12mm & 2 x 20mm barbed for hose.

Uses standard size Jabsco plug-in ports

12 volt ONLY

Features and Benefits - 12 volt 40 PSI Par-Max 5.0 HD

• Fully automatic operation with integrated sealed pressure switch
• Pressure switch 40PSI or 60PSI cut off
• High capacity flow up to 19 litres 5 US gallons per minute
• Serves up to 4 x 20mm outlets on board simultaneously
• Modern 5 chamber design gives ultra smooth flow and quiet operation
• Built-in internal by-pass lowers water pulsation
• Self primes to 2.4 metres (8 feet)
• Can be installed vertically or horizontally
• Can be run dry for short periods without damage
• Powerful heavy duty ignition protected motor with thermal protection TCO
• Vibration dampening base plate & feet for quiet effi cient operation
